Model: YA-D5-4
Overall Size: 2240*1060*500-780mm
Safe Working Load: 225kg
Functions: Backrest, Footrest adjustable, High-Low, Trendelenburg, Reverse Trendelenburg
Color: Green, Blue, Yellow
Motor: Jiechang motor ( Linak, Timotion, Dewert motor option)
Warranty：3-Year on Frame and Welds, and 1-Year on Parts
After-sale Service: Online technical support
Certificate: CE / ISO
Customization: Available

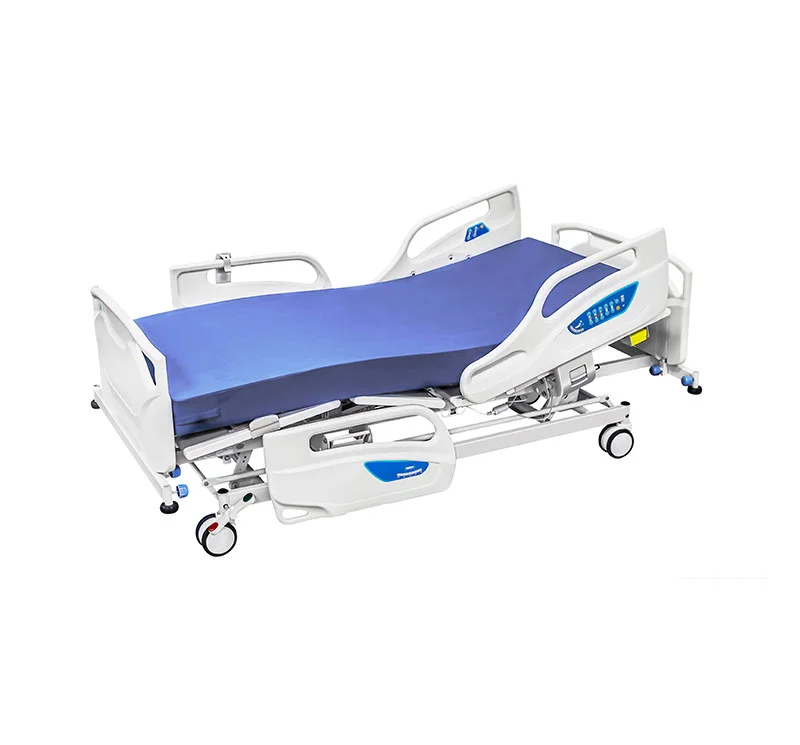

YA-D5-4 is an economical five-function electric hospital ICU Trendelenburg bed. The remote control controls all movements, It is a recovery platform that can perfectly serve as the hospital's ICU bed with the below excellent features.
Main features
- Four split side rails, drop down under the platform
- Hand remote control
- Detachable head/footboard with easy lock
- Caster diameter of 125mm with brakes
- Bumper caster on four corners
- Auto-counter to prevent the patient from sliding onto the foot end
- With an angle indicator embedded in the railing for back and Trendelenburg adjustment(optional)
- Manual CPR on both sides(optional)
- Detachable head footboard for emergency operation
Technical parameter
| Model | YA-D5-4 |
| Size | 2240*1060*500mm (88.1″ x 41.7″ x 19.6″) |
| Lying surface: | 2045* 900mm (80.5″ x 35.4″ ) |
| High-Low: | 500-780mm (19.6″ – 30.7″ ) |
| Back section adjustable | 0° to 75° |
| Knee section adjustable | 0° to 40° |
| Trendelenburg | 0° to 12° |
| Reverse trendelenburg | 0° to 12° |
| Safe working load | 170kg |
| Max working load | 225kg （496 Ibs） |
